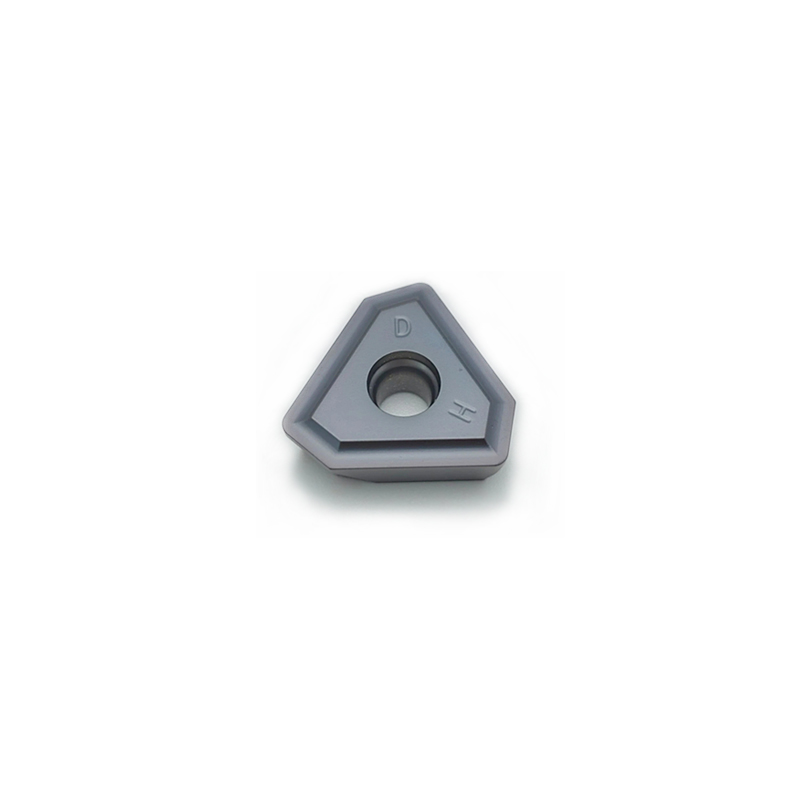

TPMX deep hole drilling insert
Description:TPMX deep hole drilling insert，U drill CNC blade
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for hole machining in various materials. Steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
TPMX inserts excel in deep hole drilling by combining a precision ground, sharp yet reinforced cutting edge with an aggressive chipbreaker for flawless chip control, all built on a foundation of tough carbide and advanced heat-resistant coatings. This focus on managing chips, heat, and mechanical stress ensures reliable performance, extended tool life, and high-quality deep holes.
Specification
| Model No. | Dimension(mm) | ||||
| φIC | S | L | φd | Re | |
| TPMX1403-RG | 8.45 | 3.52 | 8.30 | 2.8 | 0.8 |
| TPMX140308-LG | 8.45 | 3.52 | 8.30 | 2.8 | 0.8 |
| TPMX1704-RG | 10.30 | 4.04 | 9.60 | 3.9 | 0.8 |
| TPMX170408-LG | 10.30 | 4.04 | 9.60 | 3.9 | 0.8 |
| TPMX240512-LG | 14.20 | 5.50 | 13.90 | 4.4 | 1.2 |
| TPMX2405-RG | 14.20 | 5.50 | 13.90 | 4.4 | 1.2 |
| TPMX280716-LG | 17.00 | 7.60 | 16.10 | 5.5 | 1.6 |
| TPMX2807-RG | 17.00 | 7.60 | 16.10 | 5.5 | 1.6 |
Products Show
