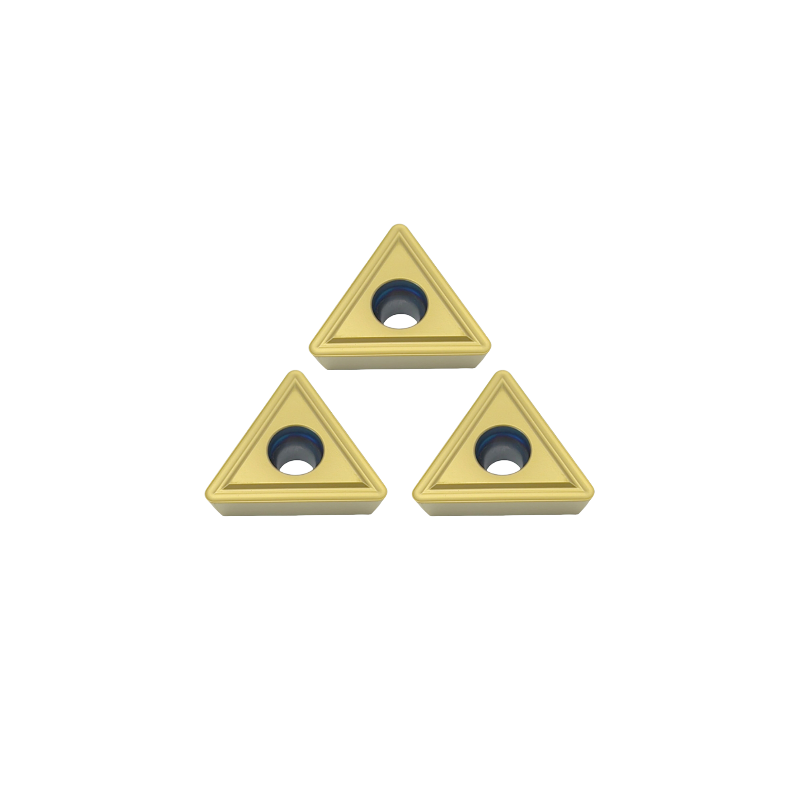

Deep Hole Drilling Insert TPMT
Description:Deep Hole Drilling Insert TPMT，U drill CNC blade
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for hole machining in various materials. Steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
TPMT inserts are specifically designed ISO-standard triangular inserts optimized for deep hole drilling applications.Three cutting edges offers economical use.
Specification
| Model No. | Dimension(mm) | |||||
| φIC | S | L | φd | Re | AN | |
| TPMT16T312R-23 | 9.525 | 3.97 | 16.50 | 3.4 | 1.2 | 7° |
| TPMT220612R-23 | 12.70 | 6.35 | 22.00 | 4.4 | 1.2 | 7° |
