800 Deep hole drilling guide pads
Description: 800 series deep hole drilling guid pads, U drill CNC blade shim
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for hole machining in various materials. Steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
800 series deep hold drilling guide pads/wear pads are precision-engineered components critical for achieving hold straightness, stability, surface finish, and tool life in demanding deep hole drilling especially BTA . They act as the “bearing surface” guiding the drill body within the hole.
Specification
| Model No. | Dimension(mm) | ||||
| φIC | S | L | φd | Re | |
| 800-06A | 7.70 | 17.975 | 2.99 | 2.80 | 0.20 |
| 800-07A | 9.20 | 19.975 | 3.49 | 3.50 | 0.25 |

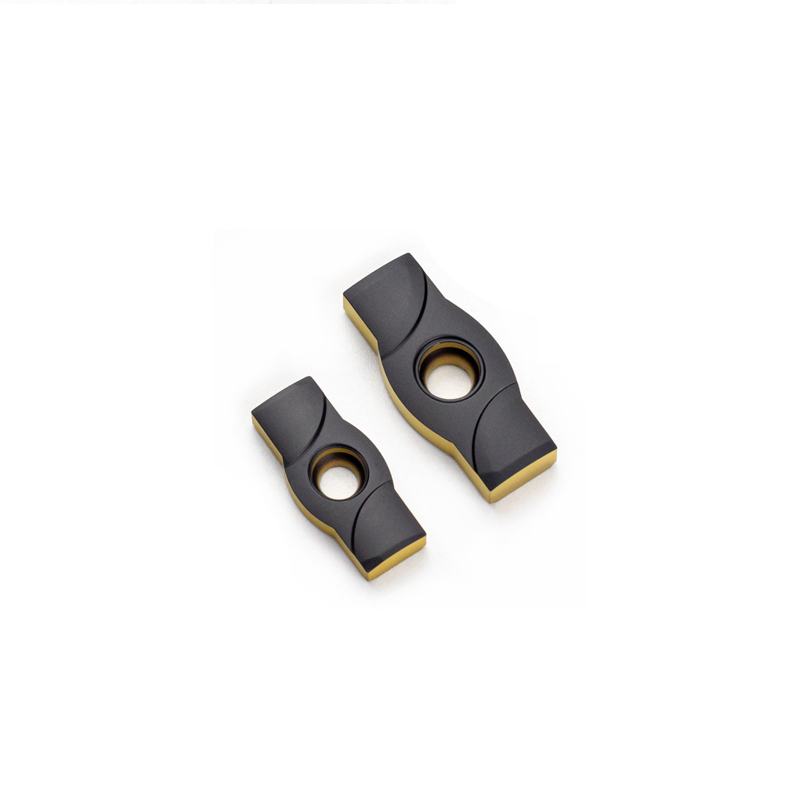

Products Show
