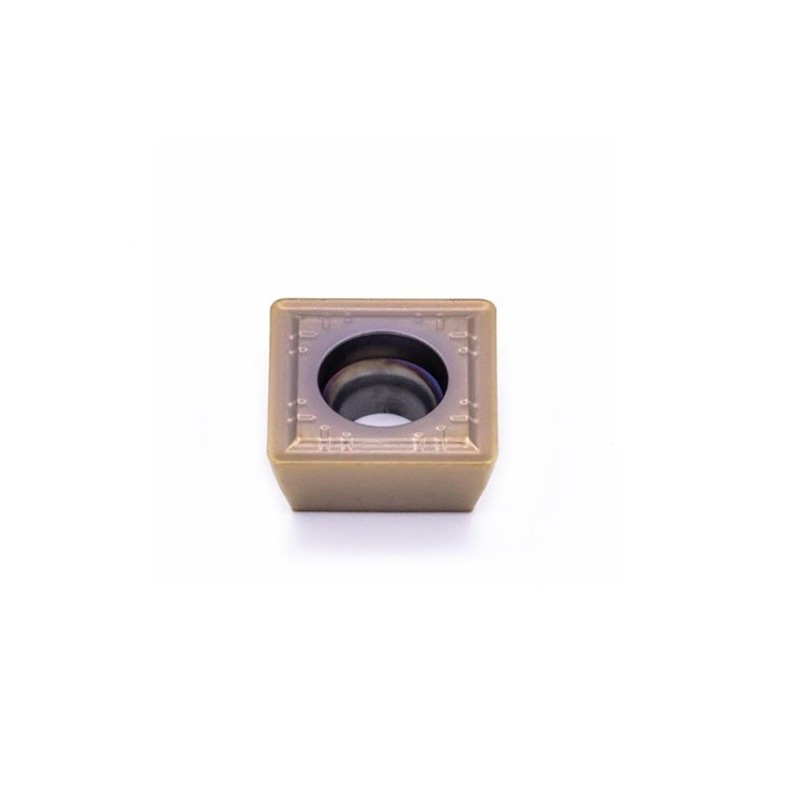

SPMG Shallow hole Drilling Insert
Description:SPMG Shallow hole Drilling Insert，U drill CNC blade
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for hole machining in various materials. Steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
SPMG Carbide drill insert for shallow hole drilling.
It is power-efficient, productive, and reduces demands on the machine tool spindle as the main cutting forces are directed axially along the spindle. Internal plunge milling is started by drilling a hole for the plunging tool. SP type with PVD coating performs good wear resistance, collapse resistance, and oxidation resistance.
Specification
| Model No. | Dimension(mm) | |||
| φIC | S | φd | Re | |
| SPMG050204 | 5.00 | 2.38 | 2.25 | 0.4 |
| SPMG060204 | 6.00 | 2.38 | 2.61 | 0.4 |
| SPMG07T308 | 7.94 | 3.97 | 2.85 | 0.8 |
| SPMG090408 | 9.80 | 4.30 | 4.05 | 0.8 |
| SPMG110408 | 11.50 | 4.80 | 4.45 | 0.8 |
| SPMG140512 | 14.30 | 5.20 | 5.75 | 1.2 |
Products Show
