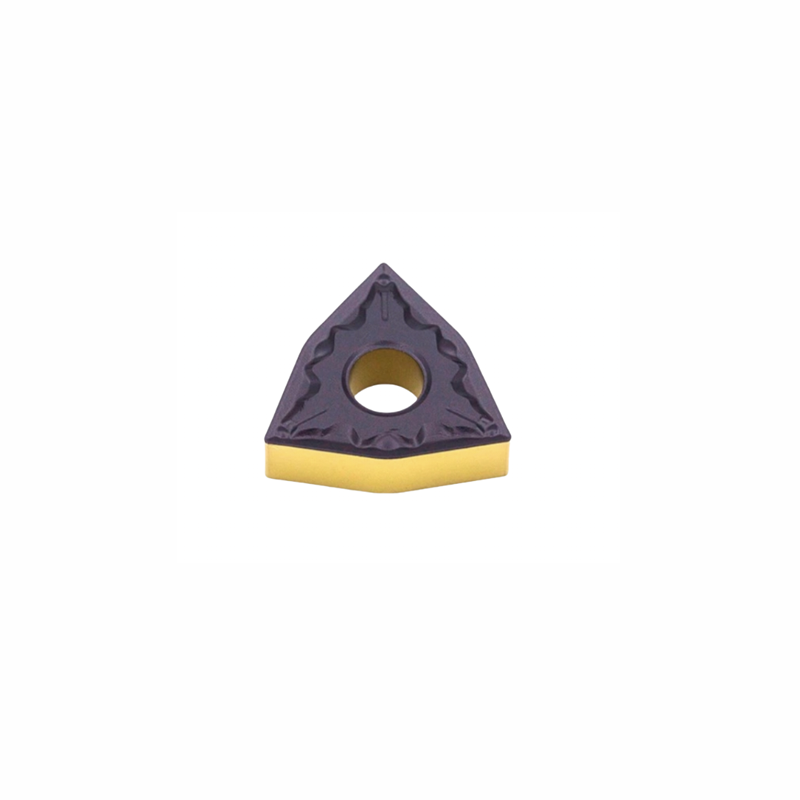

WNMG Carbide Turning Insert
Description: WNMG Carbide Indexable Turning Insert with coating
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application: Recommended for rough, semi-finishing, and finishing of machining most steels, stainless steels, cast irons, and super alloys under stable conditions.
- OEM & ODM: OEM is welcome
Description
WNMG 80° Turning Inserts double-sided inserts with (0°) negative relief angle, offering a strong edge for general applications and varying depths of cut dependent on chip breaker type across most materials. WNMG Turning Inserts can deal with multiple operations by combining different chip breakers and grades. It’s a highly economical choice for your production, since they are made symmetrically, so that when one cutting edge is worn out, they can be rotated to another edge.
Specification
| Model No. | Dimension(mm) | |||||
| φIC | L | S | φd | RE | AN | |
| WNMG080404 | 12.70 | 8.70 | 4.76 | 5.16 | 0.4 | 0° |
| WNMG080408 | 12.70 | 8.70 | 4.76 | 5.16 | 0.8 | 0° |
| WNMG080412 | 12.70 | 8.70 | 4.76 | 5.16 | 1.2 | 0° |
Products Show
