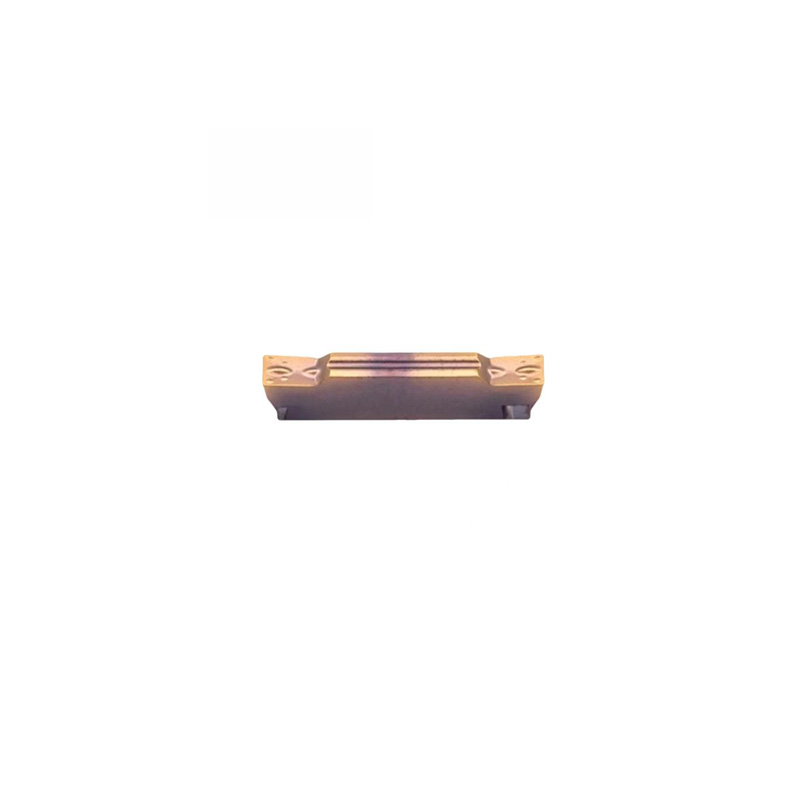

MGMN Carbide Insert
Description:MGMN carbide indexable CNC cut-off and grooving insert
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:With our parting and grooving inserts, you get high productivity and long tool life. It performs well on turning material steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
MGMN Cut-off and grooving inserts are inserts for cylinder parting and grooving, including the outer circular, the inner hole groove, the cutter withdrawal groove, and the end face groove. The groove shape includes the narrow, wide, and forming grooves. MGMN cutting insert is shaped for parting and grooving. Cutting edge shape is straight without holes through the insert. Strong cutting edges realize the best reliability in hard cutting conditions and long endurance.
Specification
| Model No. | Dimension(mm) | ||||
| b | Re | L | d | t | |
| MGMN150 | 1.50 | 0.15 | 16.0 | 1.2 | 3.5 |
| MGMN200 | 2.00 | 0.20 | 16.0 | 1.6 | 3.5 |
| JSMN250 | 2.50 | 0.20 | 18.5 | 2.0 | 3.85 |
| MGMN300 | 3.00 | 0.40 | 21.0 | 2.35 | 4.8 |
| MGMN400 | 4.00 | 0.40 | 21.0 | 3.3 | 4.8 |
| MGMN500 | 5.00 | 0.80 | 26.0 | 4.1 | 5.8 |
| MGMN600 | 6.00 | 0.80 | 26.0 | 4.1 | 5.8 |
Products Show
