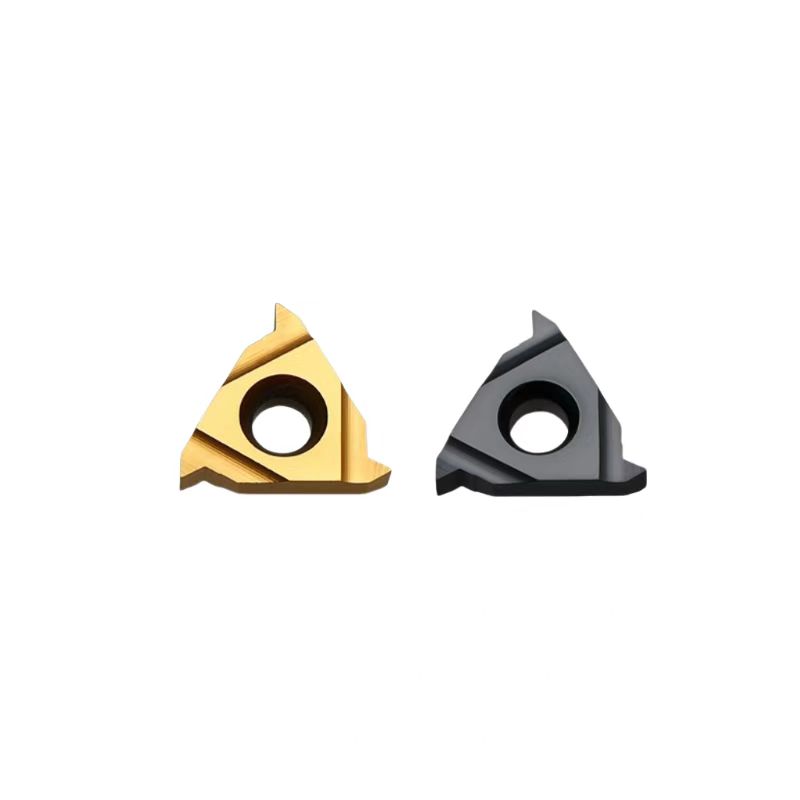

ISO Metric Thread Inserts
Description:ISO Metric Thread Inserts
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for turning steel and stainless steel, but it also performs well when turning other alloys.
- OEM & ODM: OEM is welcome
Description
Thread cutting inserts will bring you satisfaction like it did to other experienced masters of turning business. Tungsten carbide provides high temperature resistance, at the same time, the surface coating enables smooth operation of the chip from the work process. Geometry of inserts in this set is made in special ISO dimensions for precise making of threads in different pitch sizes metric angle.
Specification
| Type | Range of thread pitch | Insert Dimestions (mm) | |||
| (mm) | IC | S | X | Y | |
| 16ER0.50ISO | 0.5 | 9.525 | 3.52 | 0.4 | 0.6 |
| 16ER1.00ISO | 1 | 9.525 | 3.52 | 0.7 | 0.7 |
| 16ER1.25ISO | 1.25 | 9.525 | 3.52 | 0.9 | 0.8 |
| 16ER1.50ISO | 1.5 | 9.525 | 3.52 | 1 | 0.8 |
| 16ER2.00ISO | 2 | 9.525 | 3.52 | 1.3 | 1 |
| 16ER2.50ISO | 2.5 | 9.525 | 3.52 | 1.5 | 1.1 |
| 16ER3.00ISO | 3 | 9.525 | 3.52 | 1.6 | 1.2 |
| 22ER3.50ISO | 3.5 | 12.7 | 4.65 | 2.3 | 1.6 |
| 22ER4.00ISO | 4 | 12.7 | 4.65 | 2.3 | 1.6 |
| 22ER4.50ISO | 4.5 | 12.7 | 4.65 | 2.4 | 1.7 |
| 22ER5.00ISO | 5 | 12.7 | 4.65 | 2.5 | 1.7 |
| 11IR1.00ISO | 1 | 6.35 | 3.05 | 0.7 | 0.6 |
| 11IR1.25ISO | 1.25 | 6.35 | 3.05 | 0.9 | 0.8 |
| 11IR1.50ISO | 1.5 | 6.35 | 3.05 | 1 | 0.8 |
| 11IR1.75ISO | 1.75 | 6.35 | 3.05 | 1.1 | 0.9 |
| 11IR2.00ISO | 2 | 6.35 | 3.05 | 1.1 | 0.9 |
| 16IR0.50ISO | 0.5 | 9.525 | 3.52 | 0.4 | 0.6 |
| 16IR1.00ISO | 1 | 9.525 | 3.52 | 0.7 | 0.6 |
| 16IR1.25ISO | 1.25 | 9.525 | 3.52 | 0.9 | 0.8 |
| 16IR1.50ISO | 1.5 | 9.525 | 3.52 | 1 | 0.8 |
| 16IR2.00ISO | 2 | 9.525 | 3.52 | 1.3 | 1 |
| 16IR2.50ISO | 2.5 | 9.525 | 3.52 | 1.5 | 1.1 |
| 16IR3.00ISO | 3 | 9.525 | 3.52 | 1.5 | 1.1 |
| 22IR3.50ISO | 3.5 | 12.7 | 4.65 | 2.3 | 1.6 |
| 22IR4.00ISO | 4 | 12.7 | 4.65 | 2.3 | 1.6 |
| 22IR4.50ISO | 4.5 | 12.7 | 4.65 | 2.4 | 1.6 |
| 22IR5.00ISO | 5 | 12.7 | 4.65 | 2.3 | 1.6 |
