SNMG Tungsten carbide milling Insert
Description:Different R angles meet the needs of fine turning and rough turning, reducing cutting resistance and achieving sharp cutting
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application: 16 high-strength cutting edges for high productivity rough and semi-finish face milling of stainless steel, steel, and alloy steel.
- OEM & ODM: OEM is welcome
Description
SNMG carbide milling insert with different R angles meet the needs of fine turning and rough turning, reducing cutting resistance and achieving sharp cutting.Raw material base, strong wear resistance, two-color coating, impact resistance.Complete range of models, different brands and groove types to suit different processing workpieces
Specification
| Model No. | Dimension(mm) | |||||
| φIC | S | L | φd | RE | AN | |
| SNMG120404 | 12.7 | 4.76 | 12.7 | 5.16 | 0.4 | 0 |
| SNMG120408 | 12.7 | 4.76 | 12.7 | 5.16 | 0.8 | 0 |
| SNMG120412 | 12.7 | 4.76 | 12.7 | 5.16 | 1.2 | 0 |
| SNMG190612 | 19.05 | 6.35 | 19.05 | 7.94 | 1.2 | 0 |
| SNMG190624 | 19.05 | 6.35 | 19.05 | 7.94 | 2.4 | 0 |
| SNMG250924 | 25.40 | 9.525 | 25.40 | 9.12 | 2.4 | 0 |
PS:The above table only shows some specifications or models. Please consult customer service for details.

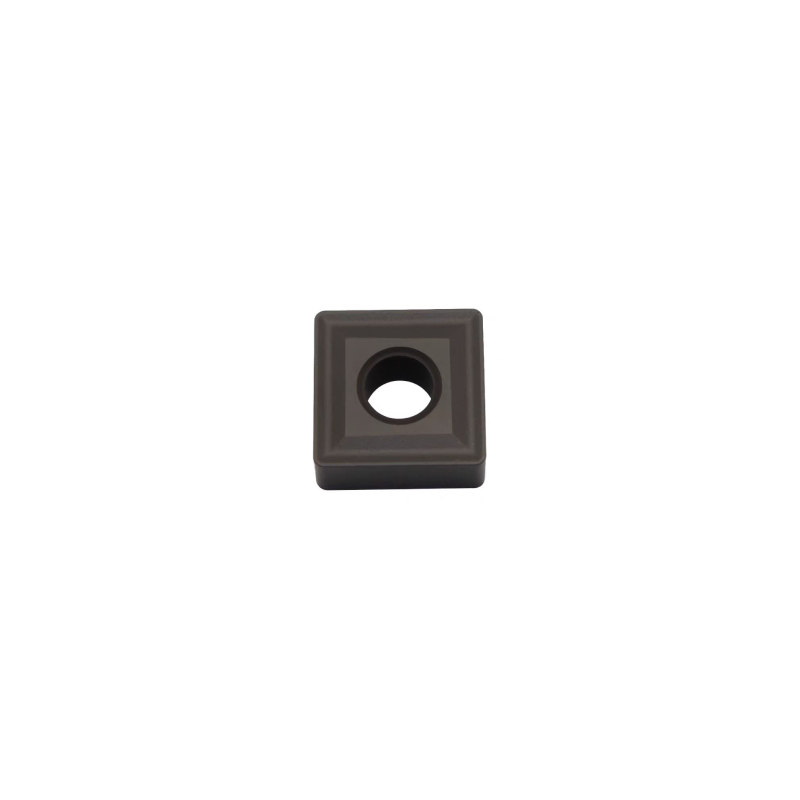

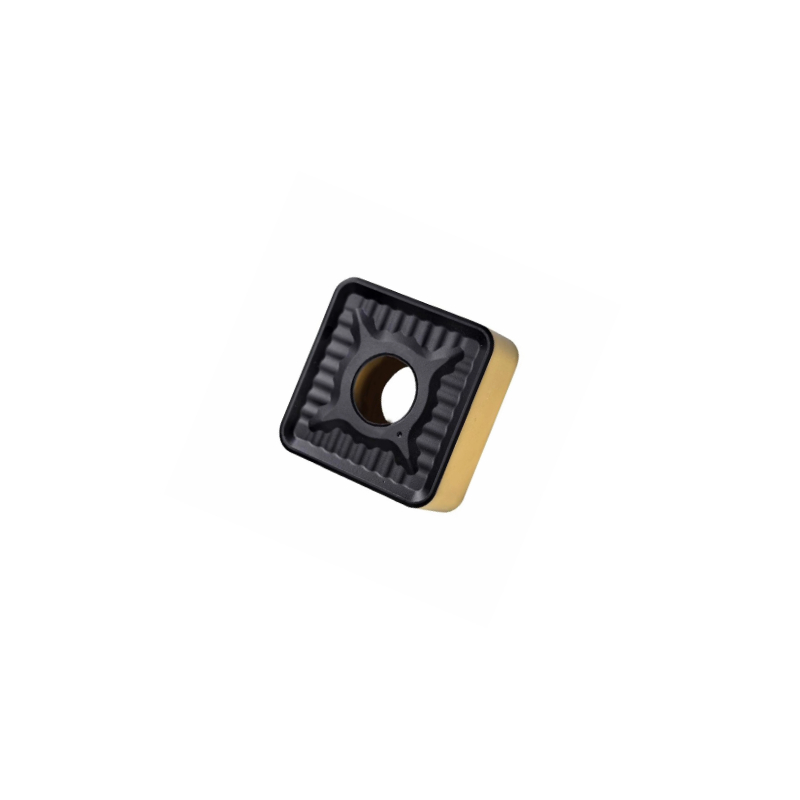

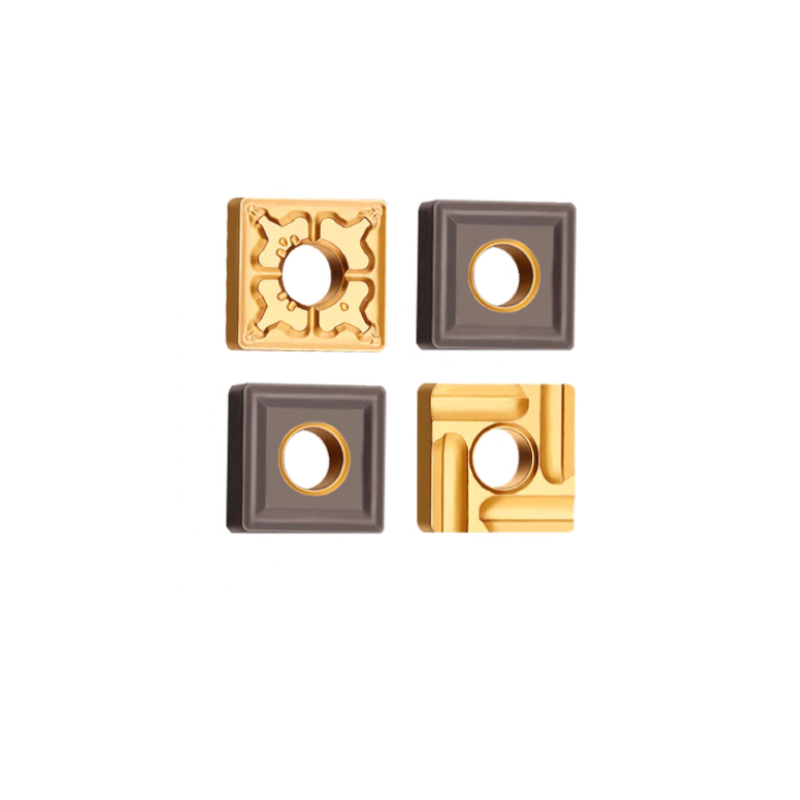

Products Show
