Selection Method of General Turning Tools:
- Understand the processed material condition,machine model and condition.
- Select the suitable insert shape, setting angle and clamping designation.
- Select details of tool bars as L/R. dimension,etc, according to above conditions
- Select the type, chip breaker and grade of inserts, corresponding to all conditions.

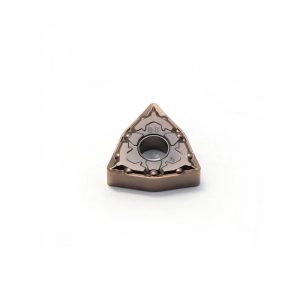

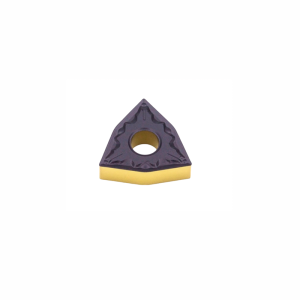

Turning Inserts:CNMA120404、CNMG160608、DNMG150408、SNMG120408、SNMA120404、TNMG160408、WNMG160412、CCMT09T304、DCMT11T308、SCMT09T304、VBMT110304、TNMX1509L、RNMG120400
Selection Method of Parting and Grooving tools:
- Understand the processed material condition,machine model and condition.
- Select the basic type according to processing methods(external, internal,face grooving
- Select details of tool bars as L/R.dimension etc, according to above conditions,
- Select the type,clamping designation,chip-breaker and grade of inserts, corresponding to all conditions.

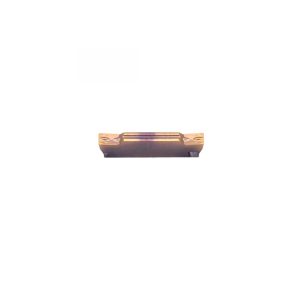

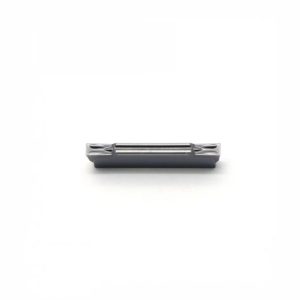

Parting and Grooving Inserts:EDMN200-C、edmn500-c、EDMN300-J、EDMN400-J、ECMN300-T、ECMN500-T、ERMN300-T、MGGN200-GL、MGGN400-GL、ERMN200-M、ERMN500-M
Selection Method of Threading Tools:
- Understand the processed material condition,machine model and condition.
- Select the tool type according to thread’s type, processing methods,otc.
- Select details of tool bars as L/R,dimension,etc, according to above conditions.
- Select the type, chip-breaker and grade of inserts,corresponding to all conditions.

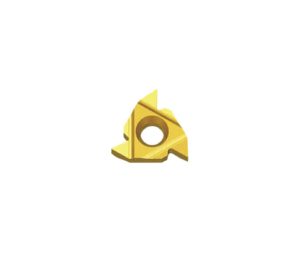

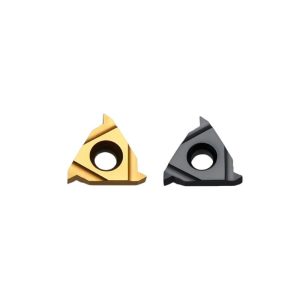

Indexable Threading Inserts:16ER1.00ISO-CA、16IR1.25ISO-CA、22ER3.50ISO-G、11IR1.00ISO-G、16ERA55、22ERN55、11IRA55、16ERA60、22IRN60
Selection Method of Milling Tools:
- Understand the processed material condition,machine model and condition.
- Select the basic type of milling tools according to the processing method (plane milling.square shoulder milling, profile milling, milling grooves, chamfer milling, etc.).
- Select solid milling tools or indexable milling inserts according to machining accuracy and machining surface shape and size and etc.
- Select interface, size and other details of milling tools according to machine model and above conditions.
- Select the type,chip-breaker and grade of inserts,corresponding to all conditions.

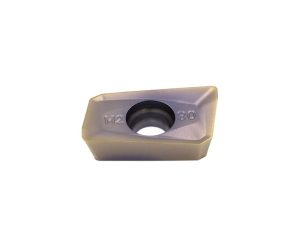

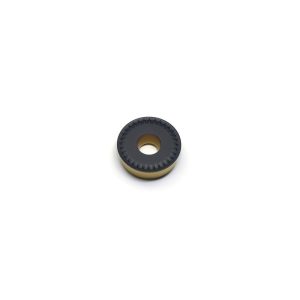

Indexabla Milling Inserts:APMT1135PDER、APMT160408PDER、ADMT11T302ER、TPKT040202R、TPKT060308R、TPKT190608R、ANMX110504PNR、ANKT040202R、LNGU110404ERGE、WNMU050408EN、XNEX080608TR、RPMW08T2MO、RPMT10T3MO、SDMT120512
Selection Method for Hole Processing Tools:
- Understand the processed material condition,machine model and condition.
- Select the basic types of hole processing tools (drilling, boring,reaming, thread processing, etc. according to machining process.
- Selct solid cutting tools or indexable hole processing tools according to the machining accuracy and dimension of the machining holes.
- Select interface, size and other details of milling tools according to machine model and above conditions.
- Select the type,chip-breaker and grade of Inserts, corresponding to all conditions.

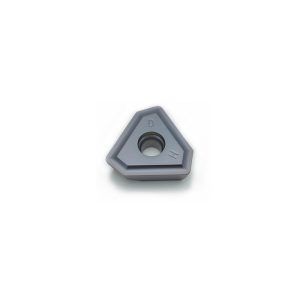

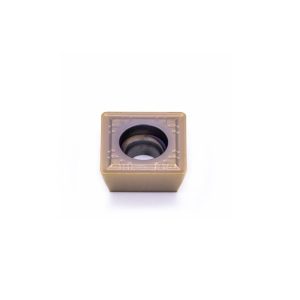

Drilling Inserts:WCMX030208、SPMG07T308、SPMG110408、TPMT16T312R、R424.9-13T308、TPMX1403-RG、TPMX240512-LG、800-06A、800-08T308H、R800.24-06T308M
