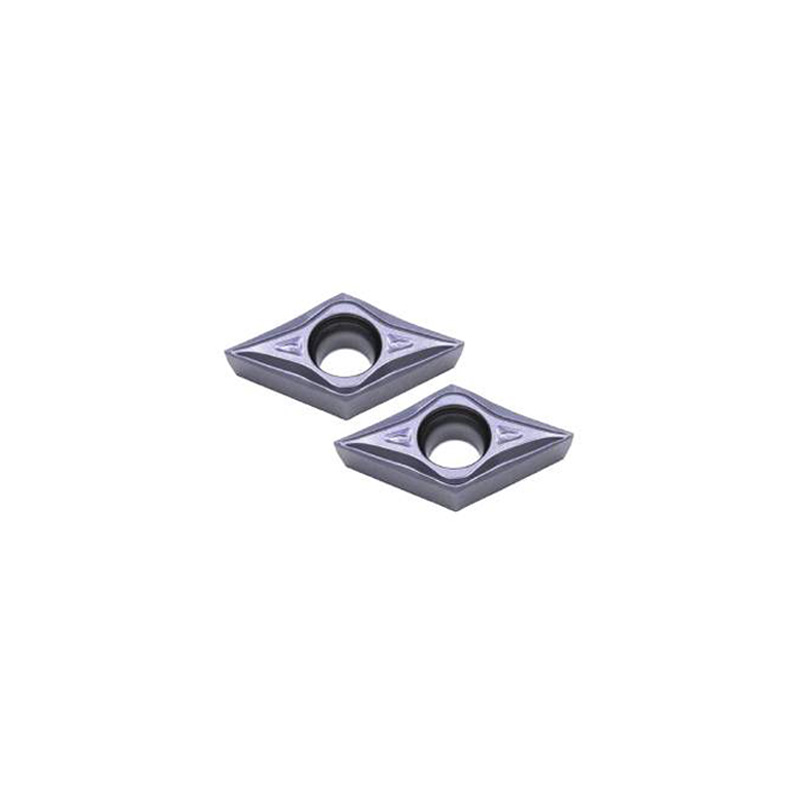

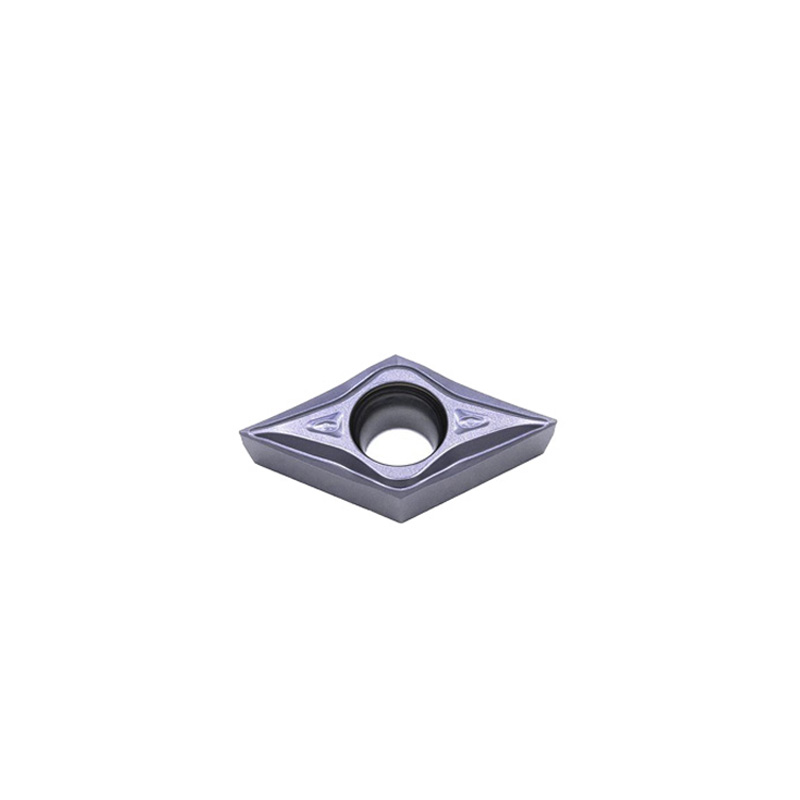

DCGT Carbide Insert
Description:DCGT carbide positive precision turning insert for small parts machining
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application: 55° diamond shape blade for turning and milling automobile engine block, cylinder head, transmission parts, gearbox. We also recommend these inserts for finishing steel and stainless-steel materials.
- OEM & ODM: OEM is welcome
Description
DCGT carbide turning inserts are 55° inserts featuring 7° positive flank with very positive rake angle and sharp cutting edge. It can combine with different chip breakers and grades for excellent chip-control and high positive geometry. It also can be customized to meet your requirements.
Specification
| Model No. | Dimension(mm) | |||||
| φIC | L | S | φd | RE | AN | |
| DCGT11T301 | 9.525 | 11.60 | 3.97 | 4.4 | 0.1 | 7° |
| DCGT11T302 | 9.525 | 11.60 | 3.97 | 4.4 | 0.2 | 7° |
| DCGT11T304 | 9.525 | 11.60 | 3 97 | 4.4 | 0.4 | 7° |
Products Show
