RDMW/RDKT/RDMT Insert
Description:RDMW/RDKT/RDMT carbide general milling insert
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application: Suitable for most materials. Mainly focus on face milling and cavity profile milling of steel, alloy steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
RDMW/RDMT/RDKT are round shape milling inserts. Solid carbide provides better rigidity than high speed steel. The R-type inserts have extra-strong cutting edge to meet the requirements for machining of curved surface of dies.
Specification
| Model No. | Dimension(mm) | ||
| φIC | S | φd | |
| RDMW1204MO | 12 | 4.76 | 4.4 |
| RDMW1604MO | 16 | 4.76 | 5.0 |
| RDMW1605MO | 16 | 5.56 | 5.5 |
| RDMT0802MO | 8 | 2.48 | 3.4 |
| RDMT10T3MO | 10 | 3.97 | 4.5 |
| RDMT1204MO | 12 | 4.76 | 4.4 |

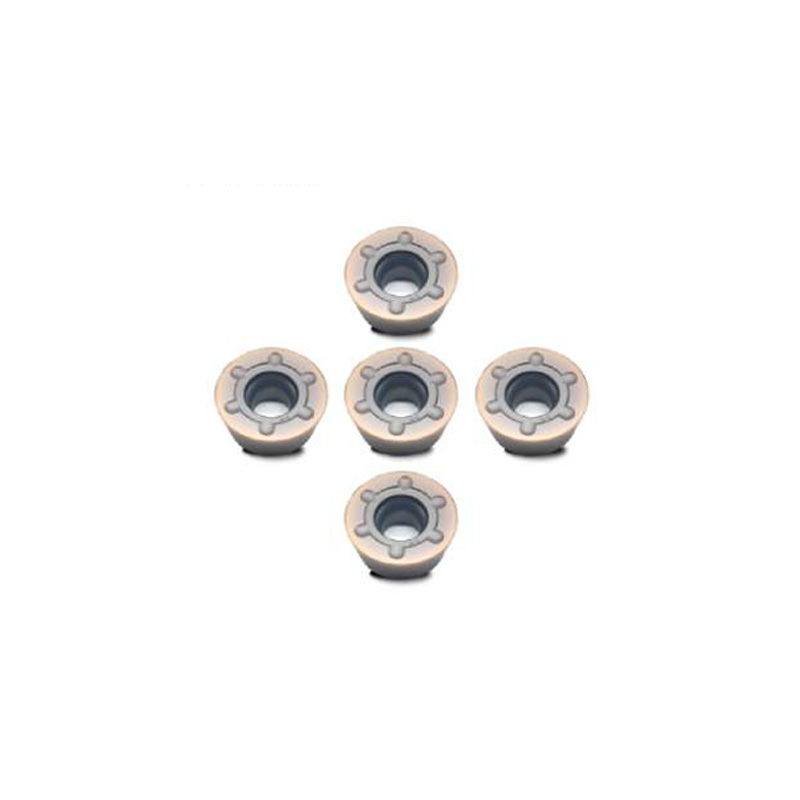

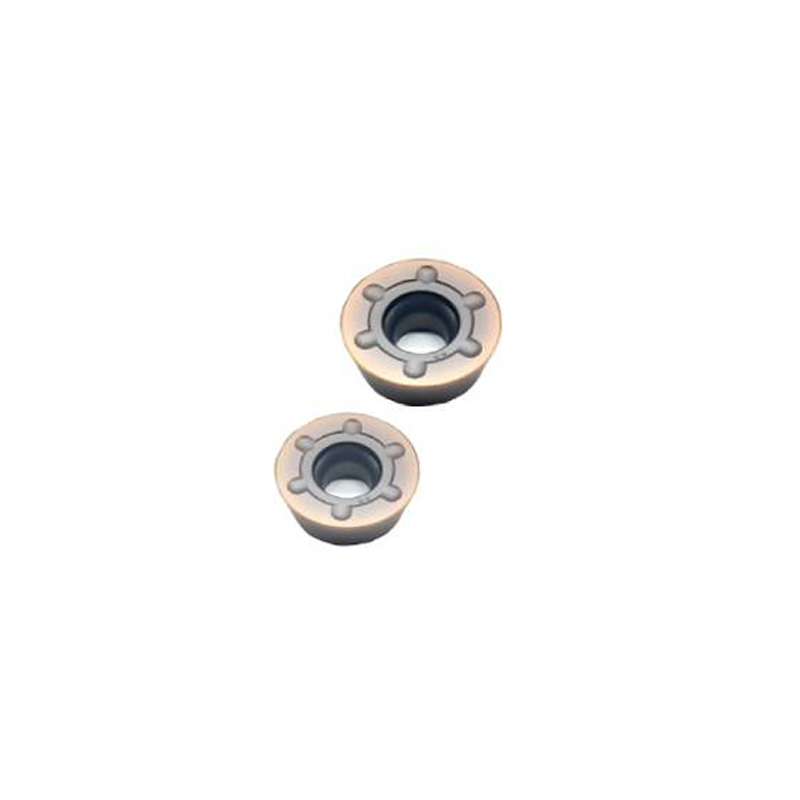

Products Show
