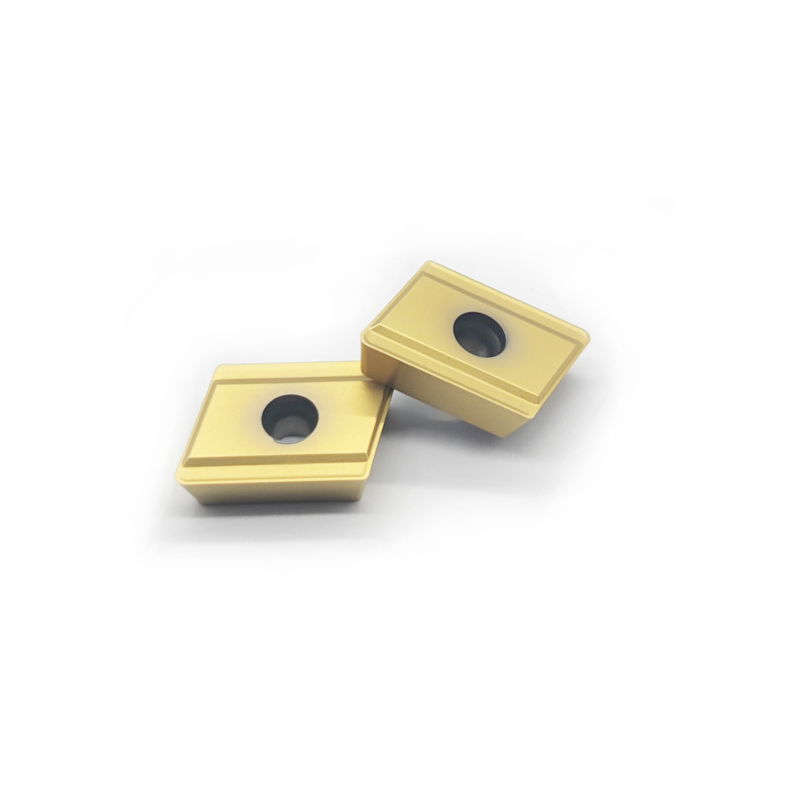

R800.24 deep hole drilling insert
Description:R800.24 deep hole drilling insert, U drill CNC blade
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application:for hole machining in various materials. Steel, stainless steel, and cast iron.
- OEM & ODM: OEM is welcome
Description
The R800.24 is a specific deep hole drilling insert designed for R800 system. Performance highlights Chip control, heat management, wear resistance and surface finish. Primary cutting insert responsible for material removal at the drill tip.
Specification
| Model No. | Dimension(mm) | ||||
| φIC | S | L | φd | Re | |
| R800.24-06T308M | 9.87 | 6.35 | 3.97 | 2.80 | 0.80 |
| R800.24-08T308M | 9.87 | 7.94 | 3.97 | 2.80 | 0.80 |
| R800.24-10T308M | 9.87 | 9.53 | 3.97 | 2.80 | 0.80 |
| R800.24-12T308M | 9.87 | 12.70 | 3.97 | 2.80 | 0.80 |
Products Show
