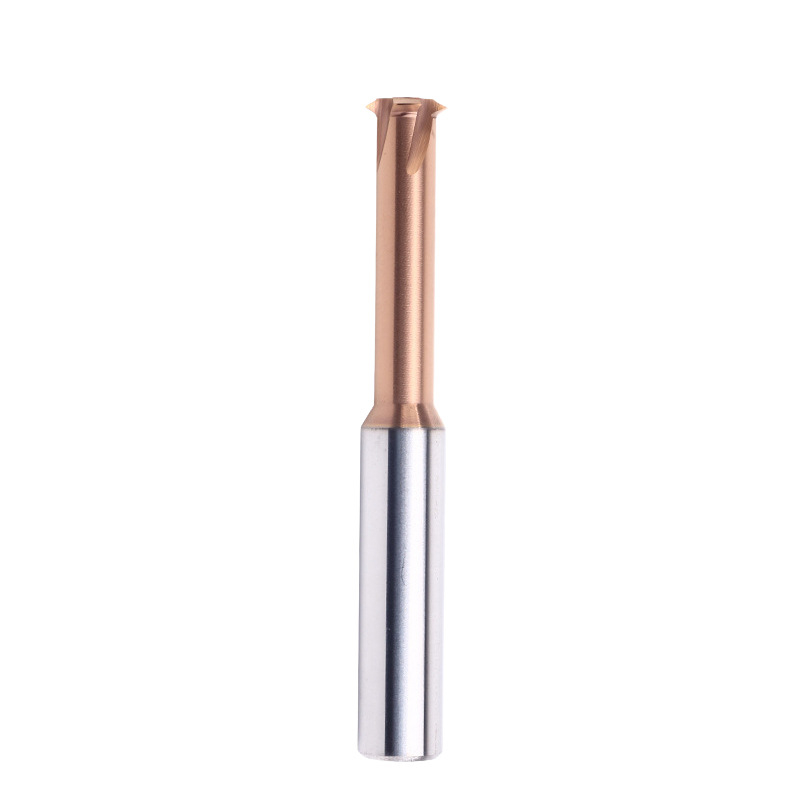

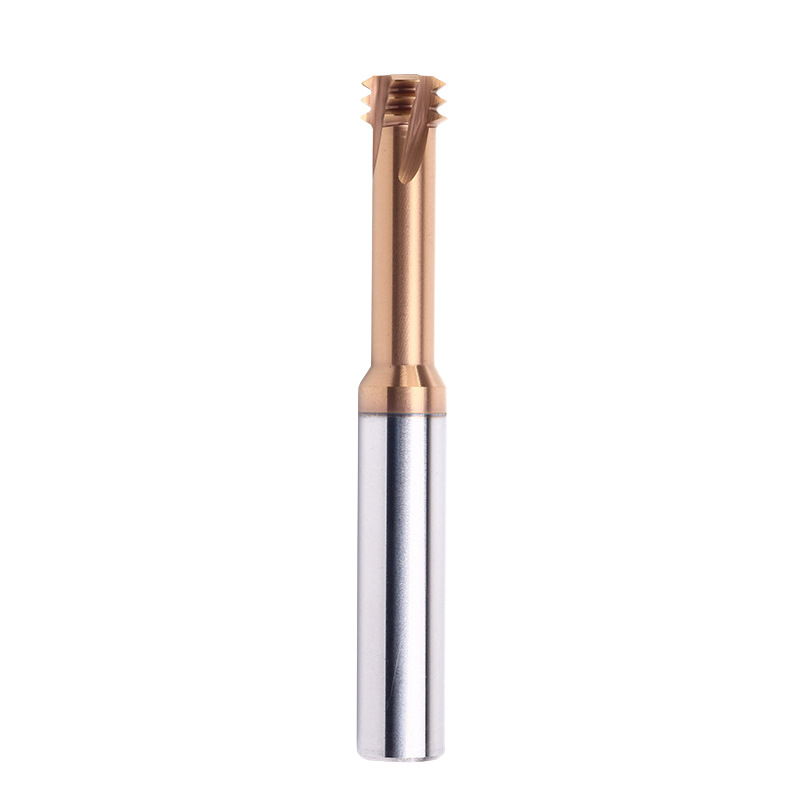

Thread solid milling cutter full tooth
Description:Suitable for grooving processing,different angles for variety of materials.Sharp cutting edge and long tool life.
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: Yes
- Application: HRC 50 degree,for steel,stainless steel,cast iron
- OEM & ODM: OEM is welcome, colorful sticker and laser marking is free
Description
Produce all kinds of solid carbide end mills including general series, special series and customized solutions.
1. Use ultra-fine grained original raw carbide materials.
2. High performance AlTiN-based Balzers coating.
3. With high temperature resistance and high wear resistance.
4. Suitable for processing cast iron, steel and stainless steel.
Specification
Thread | Pitch | OAL | CEL | CED | Shank Dia | Teeth |
| YLWX05 | 0.8 | 57 | 11 | 4.1 | 6 | 3 |
| YLWX06 | 1 | 63 | 13 | 4.8 | 8 | 3 |
| YLWX08 | 1.25 | 72 | 17.5 | 6.5 | 10 | 3 |
| YLWX10 | 1.5 | 83 | 21 | 8.2 | 12 | 3 |
| YLWX12 | 1.75 | 83 | 26 | 9.9 | 14 | 4 |
| YLWX14 | 2 | 92 | 30 | 11.6 | 16 | 4 |
| YLWX16 | 2 | 92 | 34 | 13.6 | 18 | 4 |
PS:The above table only shows some specifications or type. Please consult customer service for details.
