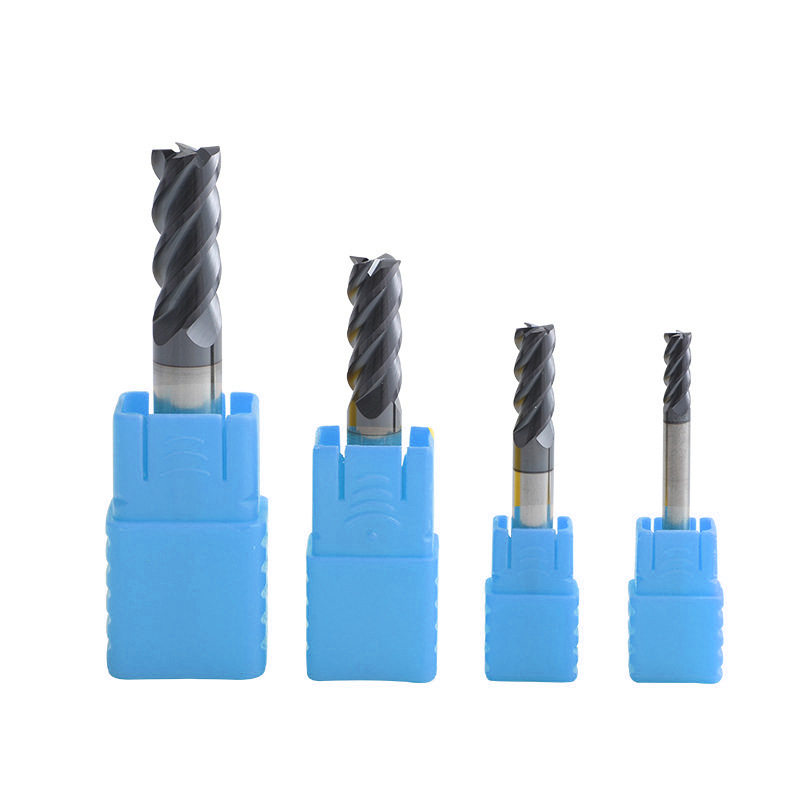

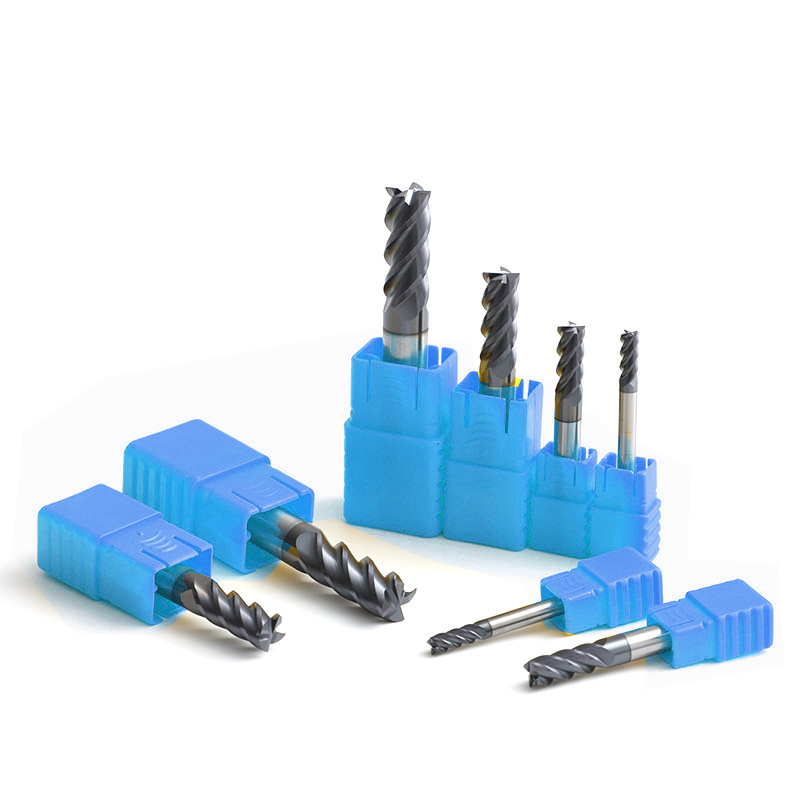

4 Flute Solid Carbide End mill
Description:Solid carbide end mills for general Use, 4 flutes, flattened, metric
- Material:100% virgin material
- Brand: Nice Carbide
- Coating: AlTiN-based S3p Balzers
- Application: for cast iron, steel and stainless steel
- OEM & ODM: OEM is welcome, colorful sticker and laser marking is free
Description
Produce all kinds of solid carbide end mills including general series, special series and customized solutions.
1. Use ultra-fine grained original raw carbide materials.
2. High performance AlTiN-based Balzers coating.
3. With high temperature resistance and high wear resistance.
4. Suitable for processing cast iron, steel and stainless steel.
Specification
| CED | CEL | OAL | Shank Dia | Teeth |
| 0.5 | 1 | 50 | 3 | 2 |
| 1 | 3 | 50 | 3 | 2 |
| 1.5 | 4 | 50 | 3 | 2 |
| 2 | 6 | 50 | 3 | 2 |
| 2.5 | 8 | 50 | 3 | 2 |
| 3 | 8 | 50 | 3 | 2 |
| 1 | 3 | 50 | 4 | 2 |
| 1.5 | 4 | 50 | 4 | 2 |
| 2 | 5 | 50 | 4 | 2 |
| 3 | 8 | 50 | 4 | 2 |
| 4 | 12 | 50 | 4 | 2 |
| 1 | 3 | 50 | 6 | 2 |
| 2 | 5 | 50 | 6 | 2 |
| 3 | 8 | 50 | 6 | 2 |
| 4 | 12 | 50 | 6 | 2 |
| 5 | 15 | 50 | 6 | 2 |
| 6 | 16 | 50 | 6 | 2 |
| 7 | 16 | 60 | 8 | 2 |
| 8 | 20 | 60 | 8 | 2 |
| 9 | 20 | 75 | 10 | 2 |
| 10 | 30 | 75 | 10 | 2 |
| 12 | 32 | 75 | 12 | 2 |
| 14 | 45 | 100 | 16 | 2 |
| 16 | 45 | 100 | 16 | 2 |
| 18 | 45 | 100 | 20 | 2 |
| 20 | 45 | 100 | 20 | 2 |
| CED | CEL | OAL | Shank Dia | Teeth |
| 0.5 | 1 | 50 | 3 | 4 |
| 1 | 3 | 50 | 3 | 4 |
| 1.5 | 4 | 50 | 3 | 4 |
| 2 | 6 | 50 | 3 | 4 |
| 2.5 | 8 | 50 | 3 | 4 |
| 3 | 8 | 50 | 3 | 4 |
| 1 | 3 | 50 | 4 | 4 |
| 1.5 | 4 | 50 | 4 | 4 |
| 2 | 5 | 50 | 4 | 4 |
| 3 | 8 | 50 | 4 | 4 |
| 4 | 12 | 50 | 4 | 4 |
| 1 | 3 | 50 | 6 | 4 |
| 2 | 5 | 50 | 6 | 4 |
| 3 | 8 | 50 | 6 | 4 |
| 4 | 12 | 50 | 6 | 4 |
| 5 | 15 | 50 | 6 | 4 |
| 6 | 16 | 50 | 6 | 4 |
| 7 | 16 | 60 | 8 | 4 |
| 8 | 20 | 60 | 8 | 4 |
| 9 | 20 | 75 | 10 | 4 |
| 10 | 30 | 75 | 10 | 4 |
| 12 | 32 | 75 | 12 | 4 |
| 14 | 45 | 100 | 16 | 4 |
| 16 | 45 | 100 | 16 | 4 |
| 18 | 45 | 100 | 20 | 4 |
PS:The above table only shows some specifications or types. Please consult customer service for details.
